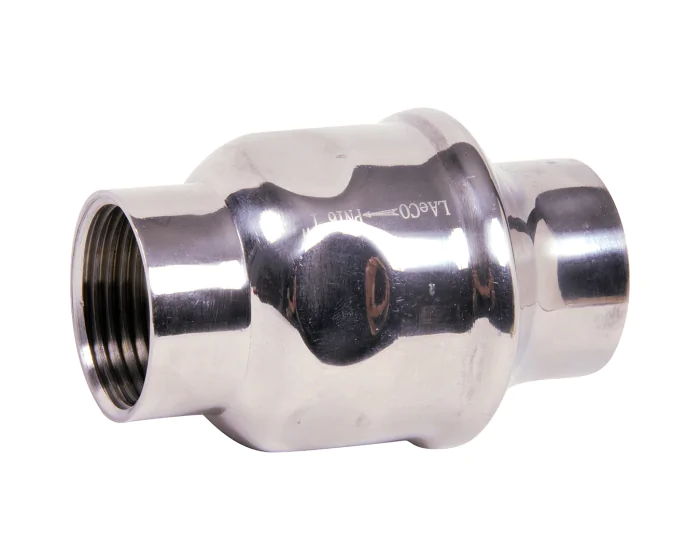

The 327 spring check valve is made of stainless steel F304 body, with single guide disc, FKM seat, short face to face, for water networks, chemical, pharmaceutical and petrochemical industries, hydraulic installations and compressed air.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Mounting direction | All positions |
| Thread standard | ISO 228-1 |
| Closure member material | Stainless steel AISI 304 |
| Application | Industry |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 66.0 |
| Fluid | Acids |
| Gasket | FKM |
| Body material | Stainless steel 304 (1.4301) |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | Stainless steel AISI 304 |
| TS max (°C) | 150 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Obturator type | Spring |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel 304 (1.4301) Spring 1/4'' | 327002 | S1010829 |
€18.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 3/8'' | 327003 | S1010830 |
€18.96
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 1/2'' | 327004 | S1010831 |
€18.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 3/4'' | 327005 | S1010832 |
€24.53
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 1'' | 327006 | S1010833 |
€28.99
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 1''1/4 | 327007 | S1010834 |
€36.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 1''1/2 | 327008 | S1010835 |
€40.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 2'' | 327009 | S1010836 |
€47.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 2''1/2 | 327010 | S1010837 |
€102.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 3'' | 327011 | S1010838 |
€312.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel 304 (1.4301) Spring 4'' | 327012 | S1010839 |
€481.73
(excl. btw)
|
add to cart |
